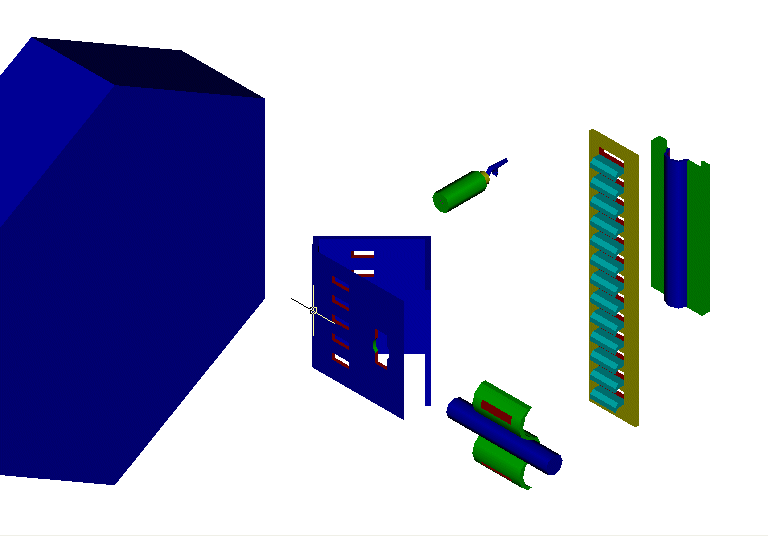

Here is a 3d isometric view. It shows the parts. An assembly drawing may still be needed to tell what the parts do. For this view though, just try to imagine what each part would do. Imagine the parts wraped around the sides of the bolt and connected with a cable tie. Each part here is one unit that would belong to several units wrapped around the bolt. |
